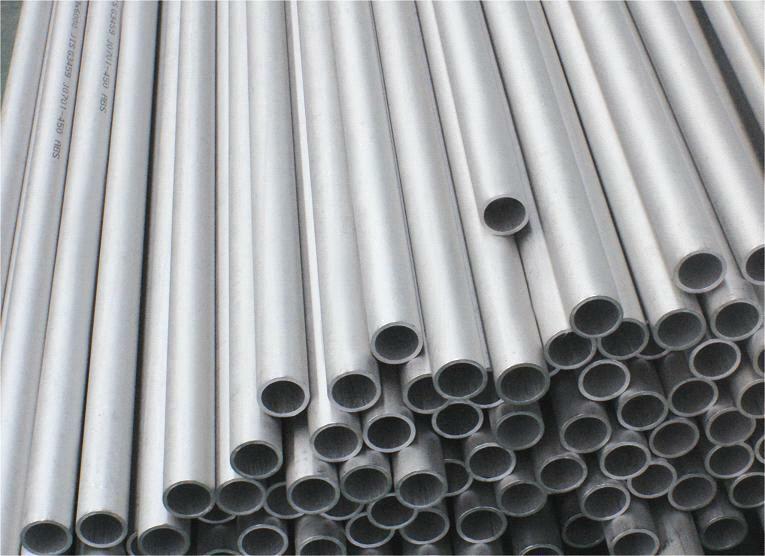

Astm B151 UNS C71500, CuNi 70/30, CuNiFer, CuNi30fe1.6mn

Standard

DIN 86019

Size:

DN15-DN500

Length

6 Meter / PCS

10 bar

14 bar

ØD

Wall

Theoretical

Wall

Theoretical

thickness

weight

thickness

weight

nominal

actual

actual

actual

inch

ND

mm

mm

Kg/m

mm

Kg/m

0.125

10

1

0.26

1

0.26

0.25

12

1

0.31

1

0.31

0.38

10

16

1

0.42

1

0.42

0.5

15

20

1

0.53

1

0.53

0.75

20

25

1.5

0.99

1.5

0.99

1

25

30

1.5

1.2

1.5

1.2

1.25

32

38

1.5

1.54

1.5

1.54

1.5

40

44.5

1.5

1.81

1.5

1.81

2

50

57

1.5

2.34

1.5

2.34

2.5

65

76.1

2

4.16

2

4.16

3

80

88.9

2

4.88

2.5

6.07

4

100

108

2.5

7.41

2.5

7.41

5

125

133

2.5

9.16

3

10.95

6

150

159

2.5

10.99

3

13.14

7

175

193.7

2.5

13.43

3.5

18.7

8

200

219.1

3

18.21

3.5

21.19

10

250

267

3

22.24

4

29.55

12

300

323.9

4

35.94

5

44.78

14

350

368

4

40.89

5.5

56

16

400

419.1

4

46.62

6

69.6

18

450

457.2

4

50.91

6

76.03

20

500

508

4.5

63.63

6.5

91.55

24

600

610

5

84.96

8

135.26

28

700

711

6

118.8

9

177.45

32

800

813

6

135.99

10

225.53

36

900

914

8

203.57

11

278.98
