Titanium alloy pipe

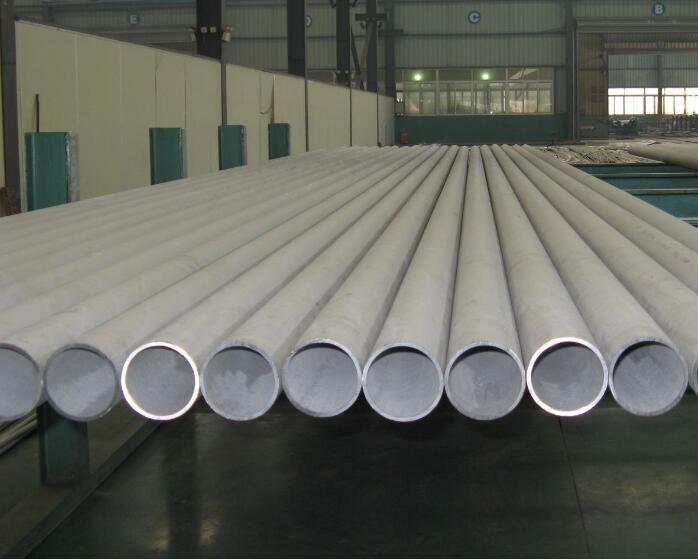

Titanium & titanium alloy pipe

7. Titanium & titanium alloy pipe.jpg

Because of the titanium excellent corrosion resistance, titanium, material widely used in petroleum, chemical, salt, Pharmaceutical, metallurgy, electronic, aviation, aerospace, Marine etc.

Standard：ASTM B861-05, ASTM B862-05, ASTM B338-06, GB/T3625-2007

Material: TA1, Gr.1, TP270H, BT1-00, TA2, TP340H, Gr.2, BT1-0, Ti2, TA3, Gr.3,

Chemical Composition:
	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.2	0.18	/	/	/	/	/	Bal
Gr2	0.03	0.08	0.015	0.3	0.25	/	/	/	/	/	Bal
Gr5	0.05	0.08	0.015	0.4	0.2	5.5~6.75	3.5~4.5	/	/	/	Bal
Gr7	0.03	0.08	0.015	0.3	0.25	/	/	0.12~0.25	/	/	Bal
Gr9	0.03	0.08	0.015	0.25	0.15	2.5~3.5	2.0~3.0	/	/	/	Bal
Gr12	0.03	0.08	0.015	0.3	0.25	/	/	/	0.2~0.4	0/.6~0.9	Bal

Mechanical Property
Grade	Tensile Strength (Min)		Yield Strength (Min)		Elongation in 4D, Min, %	Reduction of area, Min, %
	Kis	Mpa	Kis	Mpa
Gr1	35	240	25	170	24	30
Gr2	50	345	40	275	20	30
Gr3	72.5	500	55	380	18	30
Gr4	85	586	70	483	15	25
Gr5	130	895	120	828	10	25
Gr7	50	345	40	275	20	30
Gr9	90	620	70	483	12	25
Gr11	35	240	25	170	24	30
Gr12	70	483	50	345	18	25
