ASTM A105

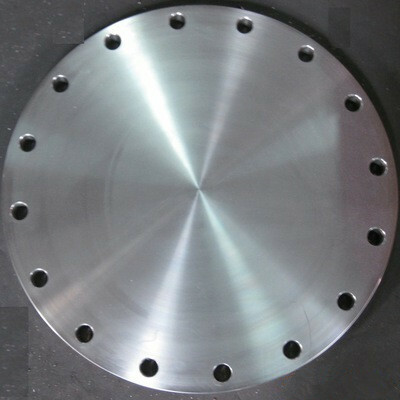

9.1ASTM A105.jpg

ASTM A105: American Society for Testing and Material
Carbon Steel Forgings for Piping Applications



Chemical Requirements

Element

Composition, %

Carbon

0.35 max

Manganese

0.60–1.05

Phosphorus

0.035 max

Sulfur

0.040 max

Silicon

0.10–0.35

Copper

0.40 max

Nickel

0.40 max

Chromium

0.30 max

Molybdenum

0.12 max

Vanadium

0.05 max

Columbium

0.02 max



Mechanical Properties

Tensile strength, min, psi [MPa]

70 000 [485]

Yield strength, min, psi [MPa]

36 000 [250]

Elongation in 2 in. or 50 mm, min,
  %: Basic minimum elongation for walls 5⁄16 in. [7.9mm] and   over in thickness, strip tests.

30

When standard round 2-in. or 50-mm gage length or   smaller proportionally sized specimen with the gage   length equal to 4D is used

22

For strip tests, a deduction for each 1⁄32 -in. [0.8-mm]   decrease in wall thickness below 5⁄16 in. [7.9 mm]   from the basic minimum elongation of the percentage   points

1.5

Reduction of area, min, %

30

Hardness, HB, max

187
